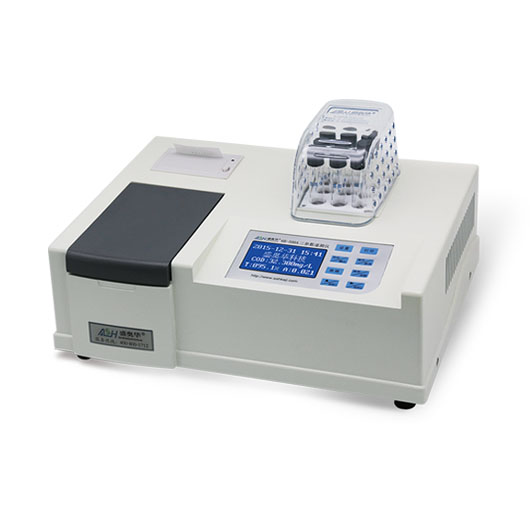

This instrument is a part of the measurement and digestion integration, taking up a small space, to solve some of the user's laboratory space is not enough to use difficult, simple operation, accurate measurement. Can be widely used in tertiary institutions, research institutes, sewage treatment plants, environmental monitoring stations, petrochemical, paper, pharmaceutical, printing and dyeing, textile, leather, wine, dairy, electronics, municipal engineering and other industries.
Online Message
Features
Features
Technical Specifications
Standard Configuration
Data download
-Chinese operating interface, large screen guidance menu liquid crystal display; it also can implement the page turning/check/modification in full screen
-It has three independent timing functional keys, and has current temperature/timing remind through twinkling and calling, can automatic protection if it exceed the limited temperature
-Memory has 5 standard curve, and its 95 curves can be set, modified, saved by manual operation
-Built-in printer and USB interface can connect the computer making online operation (optional)
-Dual wavelength and center wavelength respectively is 420nm and 610nm
-Users can use national standard samples to make automatic calculation of curve
-Cold light source, narrow band interference, and the light resource life is 100,000 hours
Display mode | Chinese liquid crystal |
Temperature control accuracy | 165±1℃ |
Heating up time | Reach to setting temperature within 10min |
Timing range | 1-199min |
Timing error | 10min±0.1s |
Temperature control range | Indoor temperature~200℃ |
Measuring error | ≦±5% |
Measuring range | COD: 5 - 6000mg/L (subsection) |
Wavelength coverage | 420-610±1 ( nm ) |
Batch sample | 9/batch/lOmin |
The number of curve | It has more than 100 standard curves |
Data storage | Five million data |
Resist chlorine interference | {cl-} < 1200mg/l ; {cl-}<4000mg/l |
Operating temperature | -5~38℃ |
Temperature/timing setting | To set digital through keyboard to display minimum setting scope 1℃/1min |
Power supply | AC220V/50HZ/600W (average power 150W) |
Product size | 380x280x 100mm |
Cooling bath frame, dedicated solid reagent, several dedicated reaction tubes, cuvette frame and semi-automatic filling injector...
