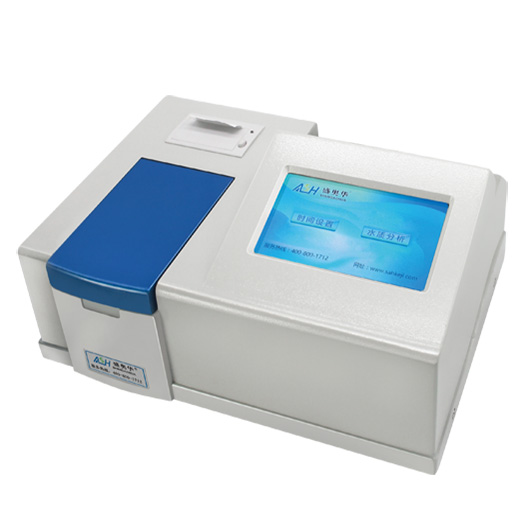

This water quality heavy metal detector uses a color touch screen display, simple operation, automatic switching measurement items, support colorimetric and colorimetric tube two colorimetric methods.
Online Message
Features
Features
Technical Specifications
Standard Configuration
Data download
-Accurately determine copper, total chromium, hexavalent chromium, zinc, iron, lead, nickel, PH and DO indicators in various water bodies
-Support colorimetric and colorimetric tube two colorimetric methods (optional)
-5 inch full touch color screen, Chinese menu
-Simple operation, automatic switching of measurement items, customized measurement items according to user requirements
-Memory 100 curves, 15 standard curves, 85 expansion curves can be freely applied under different conditions, different waste water and other conditions
-Temperature setting room temperature ~ 200 °C, the user can adjust according to need, more compatible
-The instrument can calculate the storage curve according to the standard sample
-Built-in printer can print current data, query and print historical data
-USB interface, connect the computer to the host operation, automatically generate a chart (optional)
-Cold light source, narrow band interference, light source lifetime up to 100,000 hours
-Digestion power automatically adjusts with the load quantity, intelligent constant temperature control, delay protection
-Temperature, time can be adjusted and saved
-First domestic rear-mounted splitter technology to avoid external light interference and test data is more stable and reliable
Measurement items | lead/copper/iron/nickel/zinc/hexavalent chromium/total chromium/PH/DO |
| 5-inch full touch color screen color |
comparison method | cuvette / colorimetric tube |
Measuring range | Cu：0-2mg/L Pb：0-4mg/L Ni：0-5mg/L Tcr：0-2mg/L Cr：0-2mg/L Fe：0-5mg/L Zn：0.02-1mg/L PH：0-14 DO：0-20mg/L |
Measurement error | ≤±8% PH:±0.02 DO:±0.3mg/L |
Accuracy | ±8% |
Light source stability | ≤±0.005/20min |
Storage data | 5 million |
Printer | Thermal Printer |
Ambient humidity | Relative humidity ≤85% (non-condensing) |
Rated voltage | AC220±10%/50HZ |
Net weight | 2.5Kg |
Rated power | 15W |
Intelligent digestion device, test tube rack, water cooling rack, solid reagent, reaction tube, cuvette holder, semi-automatic dosing device, etc.
