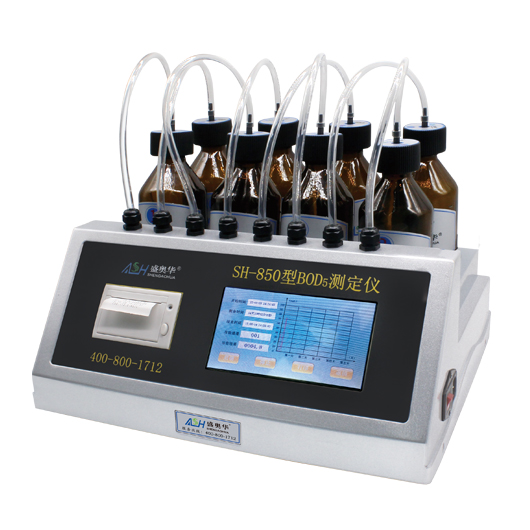

The newly developed SH-850 BOD analyzer test system of our company adopts the pressure difference test method, and it forms a sealed pressure measurement system together with pressure probe, sample bottle and CO2 absorbent, measuring pressure changes by piezoelectric sensors in a pressure probe.
Online Message
Functional characteristics
Functional characteristics
Technical parameters
Standard Configuration
Data download
-Adopt 7 Inch touch screen LCD, print BOD measurement value automatically.
- Adopt mercury-free differential pressure method, which has no mercury pollution and can provide accurate and reliable data.
- Adopt imported pressure transducer, which has stable performance and less drift and requires low maintenance.
- Be able to measure 1-8 samples with no requirement for conversion, directly display the BOD concentration value.
-Be able to measure the BOD value every day, and automatically generate map after 5 days.
- Have a wide scope of ranges with optionality, in which the BOD value of 0-1000mg/L is available for measurement.
- Have independent test sample, which allows the start time of a single sample to be decided at any time.
-Be available for viewing current experimental data and five-day biochemical oxygen demand historical data at any time.
- Adopt a microprocessor control system to automatically complete the measurement process, during which the setup can be accomplished by simple keystrokes without the supervision by special personnel, and the test can be completed by bottling the water sample according to the volume set by the range.
-Support continuous and intermittent stirring function.
Measurement range | 0-4000mg/L |
Measurement accuracy | ±10% |
Storage of data | Automatically save current values every 1 hour |
Measurement period | 5 days |
Data printing | Support |
Quantity of measurements | 8 groups |
Stirring mode | 8 groups, support continuous, intermittent stirring |
Culture flask volume | 500mL |
Rated voltage | AV220V±10%/50-60Hz |
Instrument size | 420mm*360mm*300mm |
