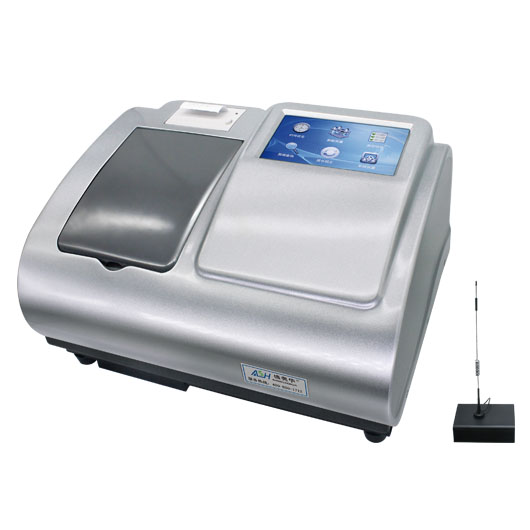

This instrument is a national patent product, which is widely used in measurement. Adopt high - end touch screen menu operation mode, automatic measurement method; With the latest Internet of things technology, the PC and mobile terminals can be used to view the data and monitor it in real time.
Online Message
Features
Features
Technical Specifications
Standard Configuration
Data download
-The operational interface is combined with Chinese and individual icon, and adopts high-end seven-inch colorful touch screen
-The measuring method includes full-automatic and semi-automatic method, and can reduce the error of traditional manual machine
-Can read data directly, and directly test many indexes, such as COD, ammonia nitrogen, total phosphorus, total nitrogen, chromaticity, turbidity and heavy metals and so on
-Full-automatic wave length have humanization design, can test items with one button, and its operation is simple and quick
-Users can use national standard sample to set up curve by themselves
-It can expand to the application for top-grade UV-light spectrophotometer
-It has 100 standard curves, and high-capacity storage chip which can store five million groups of data
-Built-in printer can print current and historical data in real time
-USB interface can connect computer to make operation (optional)
Measuring dip angle | COD | Ammonia nitrogen | Total phosphorus | Total nitrogen | Turbidity |
Measuring range | 5-50mg/L 30-600mg/L (Subsection) | 0.01-100mg/L (Subsection) | 0.001-8mg/L (Subsection) | 0.01-40mg/L (Subsection) | 0-200NTU |
Measuring error | ≦±5% | ||||
Repeatability | ±5% | ||||
The stability of luminosity | ≦0.001A/10min | ||||
Wavelength coverage | 190-1100 nmilnm | ||||
Data storage | Five million pieces | ||||
Data storage | Built-in 8G storage chip can stores five million data | ||||
Temperature control range | indoor temperature-200℃ | ||||
Digestion temperature | 165/123±0.5℃ | ||||
Digestion time | 10/30minutes | ||||
Dispose sample | 24 / 30 pieces/ batches (the configuration according to the requirement of users) | ||||
Resist chlorine interference | {cl-} < 1200mg/l ; {cl-} < 4000mg/l | ||||
Working power supply | AC 220V±10%/ 50Hz | ||||
Product size | 435x330x170 mm | ||||
Weight | 3Kg | ||||

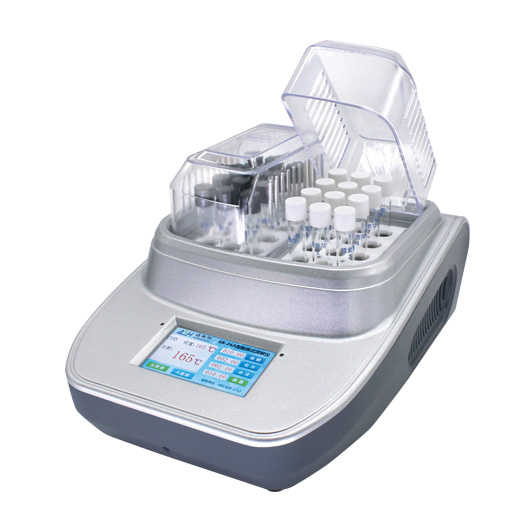

Intelligent digest instrument, cooling bath frame, dedicated solid reagent, several dedicated reaction tubes, cuvette frame and semi-automatic filling injector…
