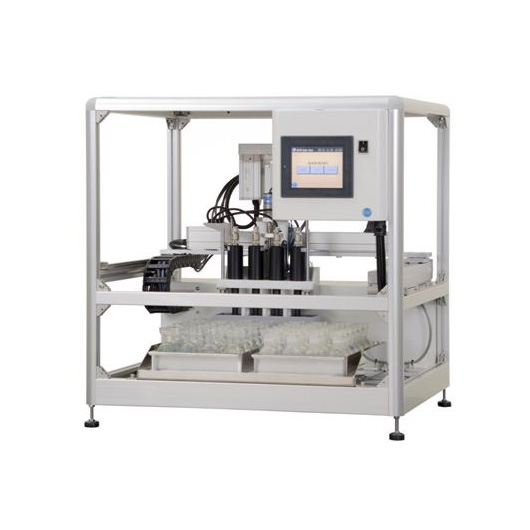

BOD-KO-02 Intelligent BOD automatic analyzer

Intelligent BOD analyzer BOD-KO-02, is a new generation of automatic BOD measurement instrument designed by the measuring principle of membrane electrode method. It has full-intelligent programmable design and many advantages, such as precise, reliable measurement and convenient operation etc. These advantages reduce the workload of the scientific research personnel and improve the working efficiency for users. The instrument interface shows rich information, which makes user quickly master the operation of the instrument.


Online Consulting

Online Message

Product description

  • Product description
  • Features
  • Technical Specifications
  • Data download

Product description

Features

Technical Specifications

Data download

-Meet the criterion

Accord with the national standard: HJ 506-2009 / JIS K-0102- 32.3


-Application area

It is applicable to test surface water and measure BOD in industrial waste water and domestic sewage


-Intelligent: full-automatic measuring B0D

-Standardization: 5-day culture method, electrode determination, accord with national standard

-High throughput: can measure 16 groups of samples in one time (three-section dilution)

-High efficiency: sample test (1 set includes 3 samples) + electrode cleaning < 1 minute

-Simple operation: the change of setting and the start and stop of measurement etc., can be controlled according to the instructions of the LCD touch screen, do not need professional training

-Automatic correction: it has the function of automatic electrode, the daily calibration data can be automatically stored

-Data storage: it uses non-volatile memory, so the systematic parameter and the experimental data will not lost when power down

-Friendly environmental: it does not use any dangerous reagents, so the draining liquid is harmless


Type

Intelligent BOD automatic analyzer BOD-KO-02

Measuring method

Membrane electrode method (original battery type)

Accord with HJ 506-2009 JIS K-0102- 32.3

Measuring range of electrode

0.00-19.99mg/L

Resolution ratio

0.01mg/L

Repeatability

0.1mg/L

Measure sample number

16 groups of samples x 3 section dilution (at most measure 328 groups of sample)

Shuttle

culture bottle (100mL) assigned by our company

Stirring

Constant-speed stirrer

Measurement Department

All-around three axles driven

Automatically clean electrode

One tray (24 culture bottles)x 2

Correction

Automatically correct according to 20°C saturated water

Control method

PLC program control

Operation

Touch screen (320x240)

Basic index

Power supply: AC220V 50Hz 5A

Water supply: more than O.IMPa (tap water)

Draining outlet: near to instrument

External dimension

W780xD585xH793

To design and change through the service condition

Weight

About 70kg

Environment setting

Ambient temperature 5~45°C

No corrosive gas, the best is 20°C thermostatic chamber
