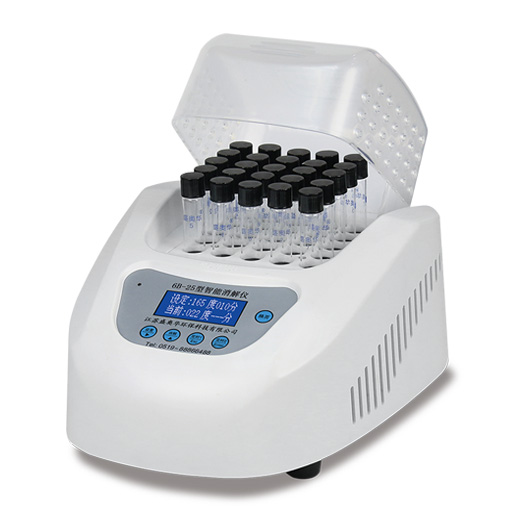

6B type of COD NC digestion apparatus (heater) can achieve the digestion function for a variety of COD water samples, total phosphorus, total nitrogen, and other elements which need heated chemical reaction, and it can also place 6/9/12/20/25 / 56 sets with opening digestion tube of specifications of 16 mm x 160 mm or 16mmx 130mm of airtight digestion pipe, and it will automatically control temperature and keep time according to the digestive temperature and time set by memory of instrument.
Online Message
Features
Features
Technical Specifications
Standard Configuration
Data download
According to the latest environmental protection industry standards of the state requirements carefully developed by the ninth generation of intelligent instrument, instrument shell adopts contemporary pop all the mold of the corrosion resistance, high temperature resistant material designed, using digital big screen Chinese language display LCD interface technology; Using heat conduction performance of the aluminum alloy material as the heating body, compared with other similar products Has quickly increase temperature more uniform temperature constant, the advantage of simple, stable and reliable operation. Widely used in the ring, medical, health, food, papermaking, printing and dyeing, petrochemical, metallurgical industries such as water quality testing.
-It uses Chinese blue big LCD display
-It has independent 4 timing functional keys
-Preset built-in 6 commonly used heating digestion and timing working line
-It has functions of presetting and setting temperature/modifying and saving timing working curve
-It can automatically cut the protection when temperature control exceeds the limited temperature
-The shell adopts contemporary pop mould design, and its material can resist high resistance and corrosion
Display mode | Display on Chinese liquid crystal blue screen |
Sample number of digestion | 25 pieces/ batches |
Timing range | 1 ~ 199min |
Temperature control accuracy | 165±0.5°C |
Timing error | 10min±0.1s |
Digestion mode | Digestion of totally-enclosed tube It can used for digesting COD, total phosphorus, total nitrogen, total copper and hexavalent chromium and so on |
Temperature control range | Indoor temperature ~200°C |
Operating environment temperature | -5~45°C |
Heating up time | Reach to the setting temperature within 10min |
Temperature/timing setting | To set digital through keyboard to display minimum setting scope 1℃/1min |
Working supply | AC/220V/50HZ / 460W |
Product size | 300x240x220 mm |
Weight | 5.8Kg |
Special test tubes, test tube racks, power cords, manuals, certificates, etc.
